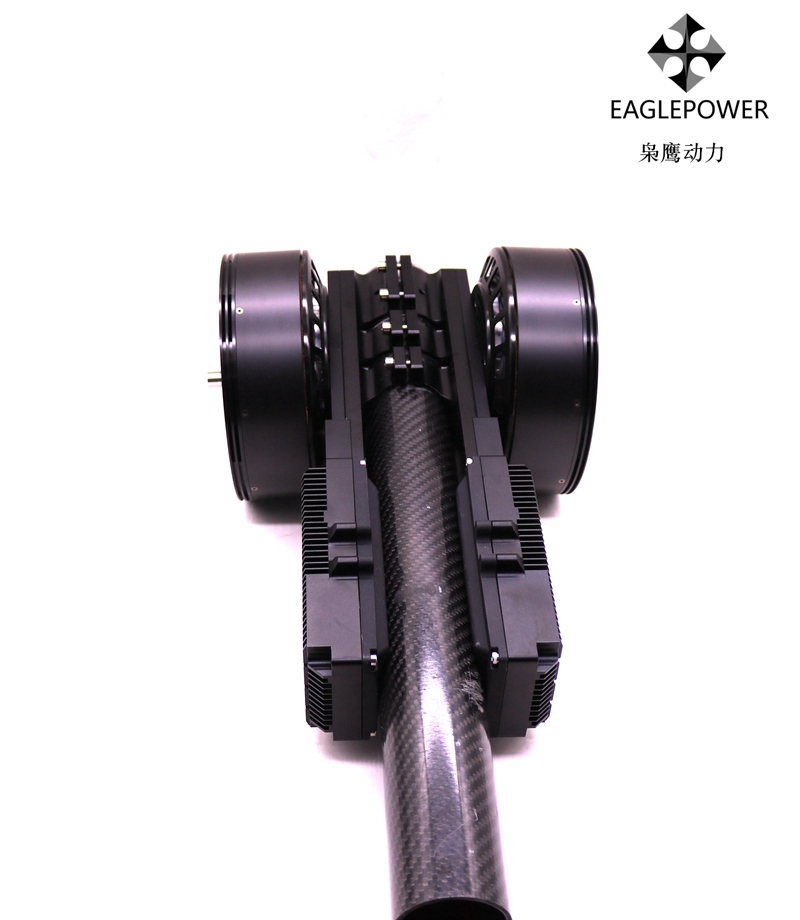

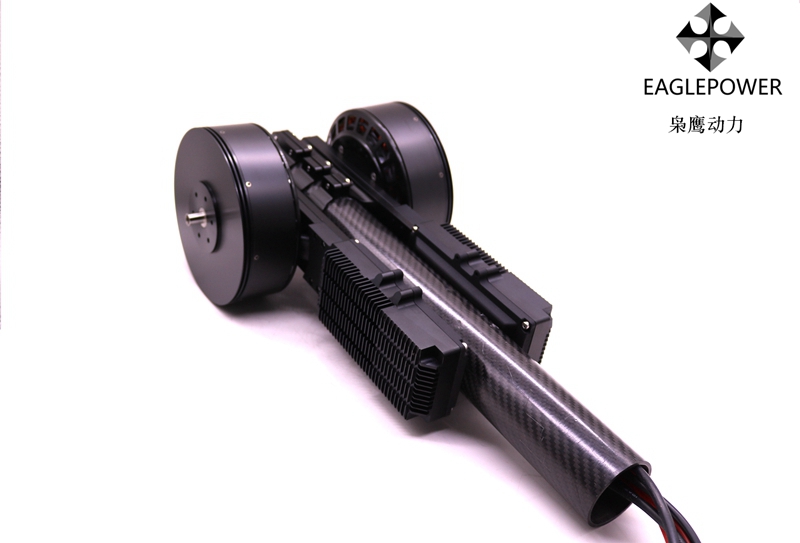

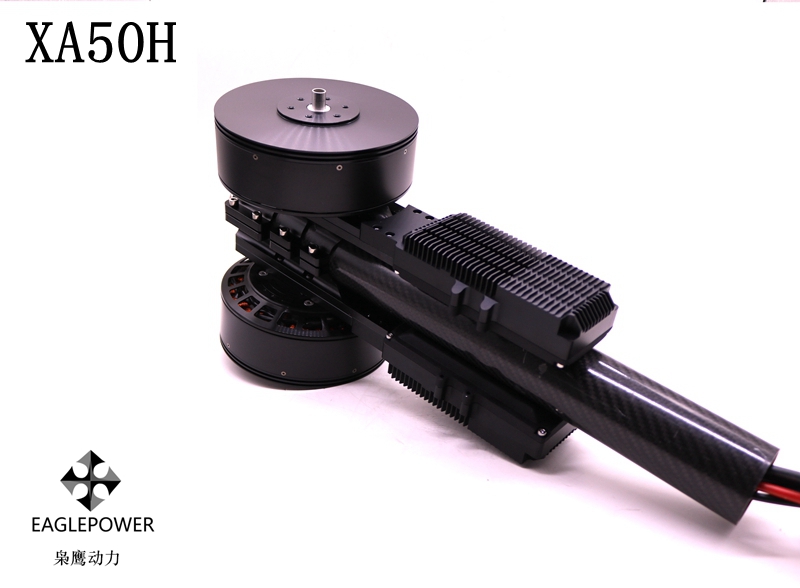

EP鹰动力无人机用共轴双桨无刷电机动力套XA50H植保多旋翼马达电调桨

浏览:4839 发表时间:2022-09-22

型号/ModelXA50H-18S  24S  FOC共轴动力套


最大拉力/Max pull

98.6KG (@24S/UP5620折叠)

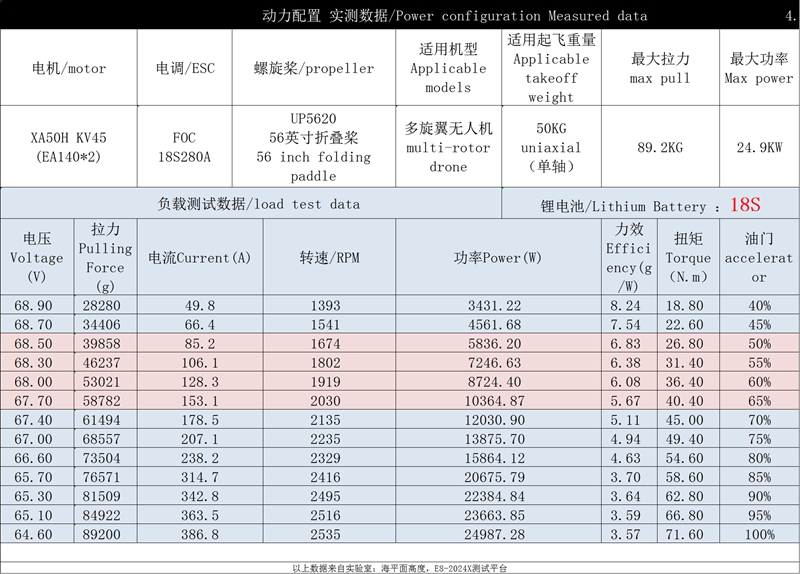

89.2KG (@18S/UP5620折叠)

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight

50KG/

适用锂电池/Applicable lithium battery

XA50H KV3824S

XA50H KV4518S

适用环境温度/Applicable ambient temperature-20℃~65℃

动力组总重量/Power combination total weight:7.98KG

电机座适用管径/Applicable pipe diameter of motor base:

Ø50mm  Ø45mm

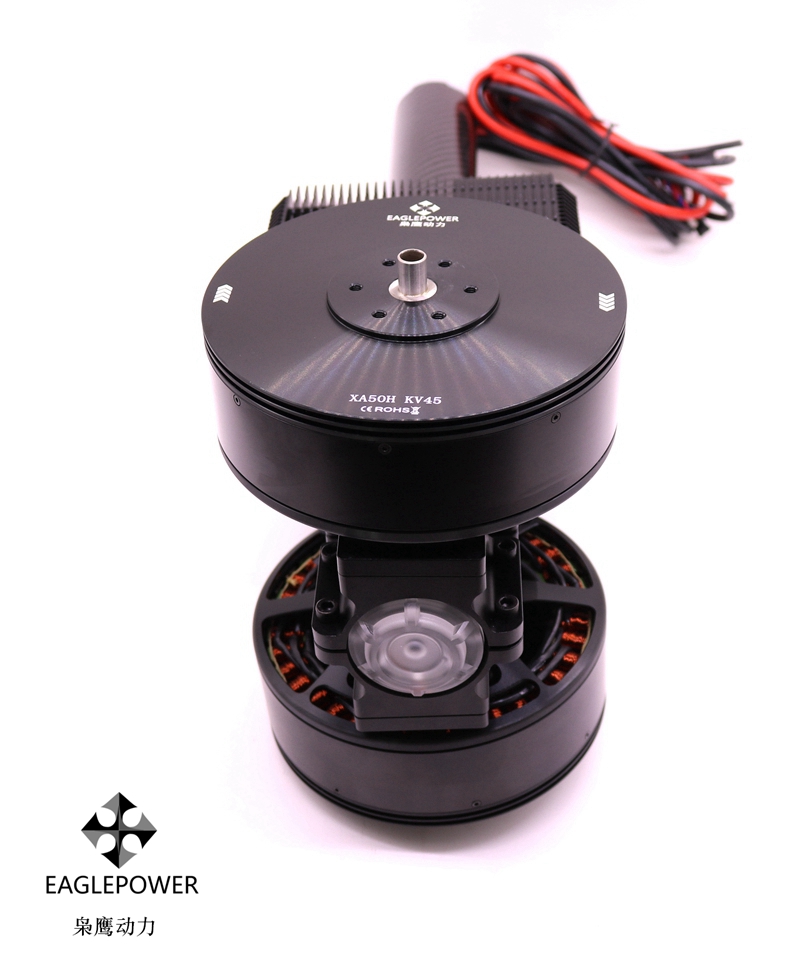

电机/Motor:13830

结构形式/Structure form:36N42P

重量/Weight:2180 g

定子铁芯尺寸/Stator core size:φ138*30 mm

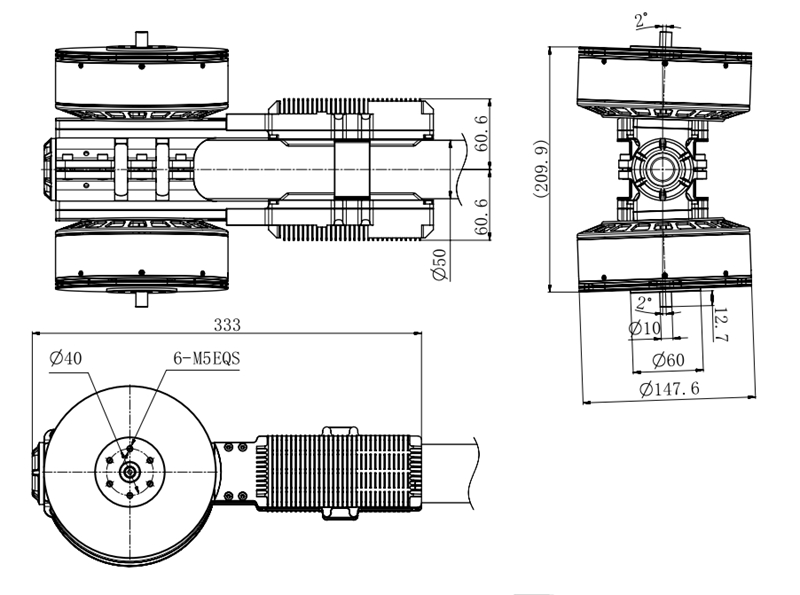

外形尺寸/Dimensions:φ147.6*60.4 mm

主轴直径/Spindle diameter:IN: φ15 mm OUT:φ10 mm

动平衡标准/Dynamic balance standard:≤15mg


电调/ESCFOC24S220A

驱动方式/Driving modeFOC 正弦波

支持锂电池/Support lithium battery48S-100S

PWM油门脉宽/PWM throttle pulse width1100us-1900us

PWM输入频率/PWM input frequency:50Hz-500Hz

PWM输入电平/PWM input level3.3V/5V

通讯接口/Communication interfaceCAN*2 (CAN2.0B, 1M bps)

黑色:GND,黄:CANH-1,绿:CANL-1,红:CANH-2,蓝:CANL-2

尺寸/ size117*67*37 mm  (L*S*H)

重量/weight630 g

工作环境温度/Working temperature-20℃~65℃

防护等级/Class of protectionIPX7

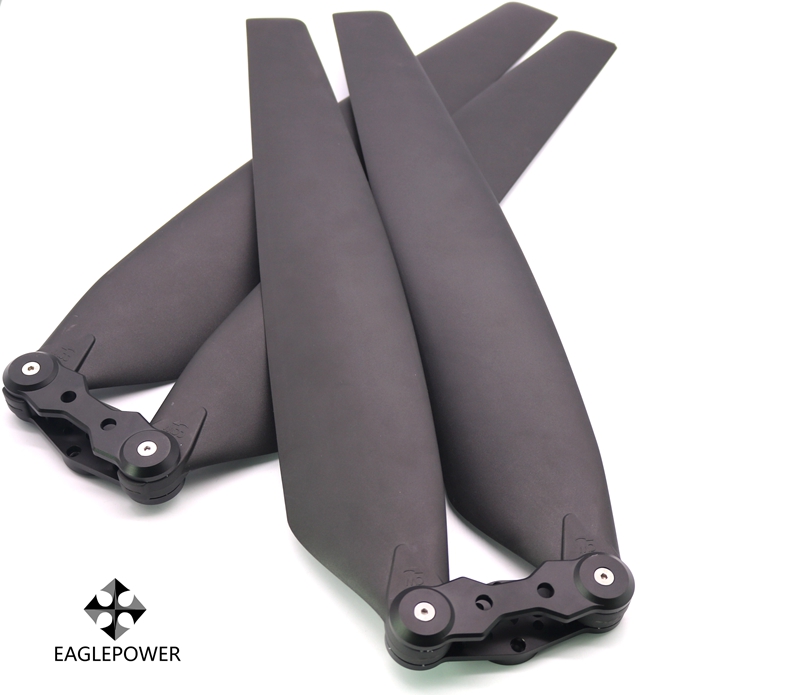

桨叶/propeller

型号/modelUP5620

结构/structure折叠

长度/length1425 mm 56英寸 56inches

螺距/Pitch20

重量/weight862g (含桨座)
