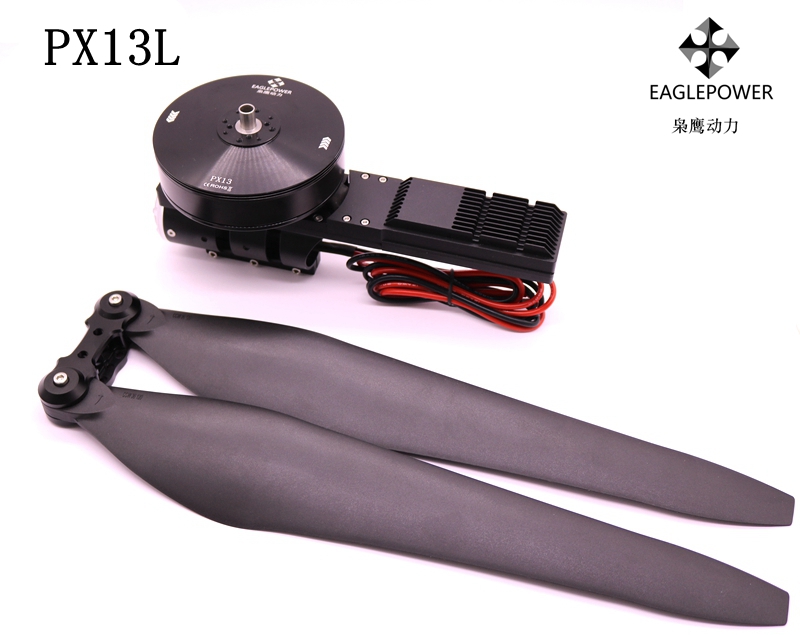

枭鹰动力套装PX13L适用多旋翼无人机单轴额定拉力11-15KG 40英寸折叠桨

浏览:1685 发表时间:2022-09-27

型号/ModelPX13L   FOC 动力套

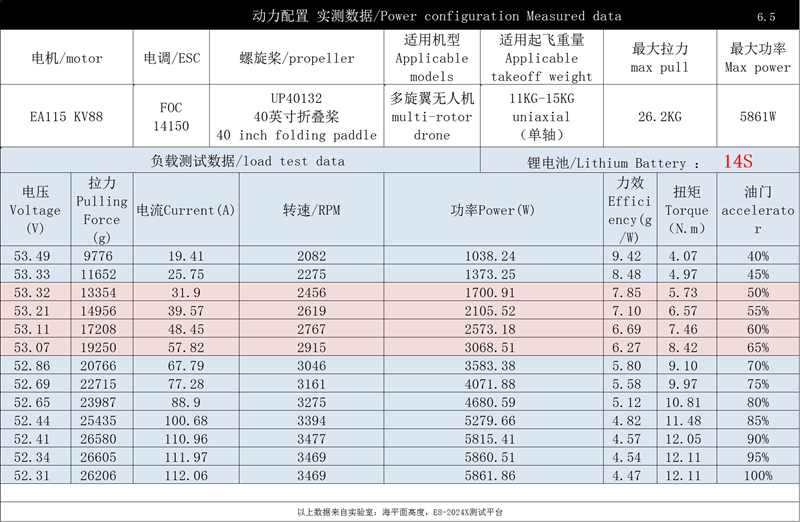

最大拉力/Max pull

26.2KG (@14S/UP40132折叠)

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight

11KG-15KG/

适用锂电池/Applicable lithium battery12-14S

适用环境温度/Applicable ambient temperature-20℃~65℃

动力组总重量/Power combination total weight:2090g

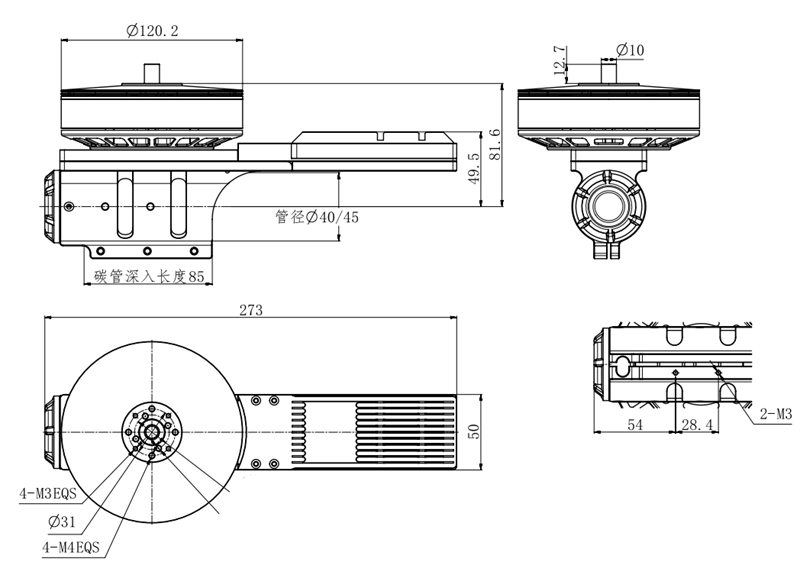

电机座适用管径/Applicable pipe diameter of motor base:

Ø40mm  Ø45mm







电机/Motor:11015 KV88

结构形式/Structure form:36N42P

重量/Weight:855 g

定子铁芯尺寸/Stator core size:φ138*30 mm

外形尺寸/Dimensions:φ147.6*60.4 mm

主轴直径/Spindle diameter:IN: φ15 mm OUT:φ10 mm

动平衡标准/Dynamic balance standard:≤15mg



电调/ESCFOC14S150A

驱动方式/Driving modeFOC 正弦波

支持锂电池/Support lithium battery12S-14S

PWM油门脉宽/PWM throttle pulse width1100us-1900us

PWM输入频率/PWM input frequency:50Hz-500Hz

PWM输入电平/PWM input level3.3V/5V

通讯接口/Communication interfaceCAN*2 (CAN2.0B, 1M bps)

黑色:GND,黄:CANH-1,绿:CANL-1,红:CANH-2,蓝:CANL-2

尺寸/ size117*67*37 mm  (L*S*H)

重量/weight395 g

工作环境温度/Working temperature-20℃~65℃

防护等级/Class of protectionIPX7







桨叶/propeller

型号/modelUP40132

结构/structure折叠

长度/lengthL1016 mm   40inches

重量/weight

UP40132430g/支 (含桨座/Propeller seat)

桨叶片单片153/One blade is 153 grams
