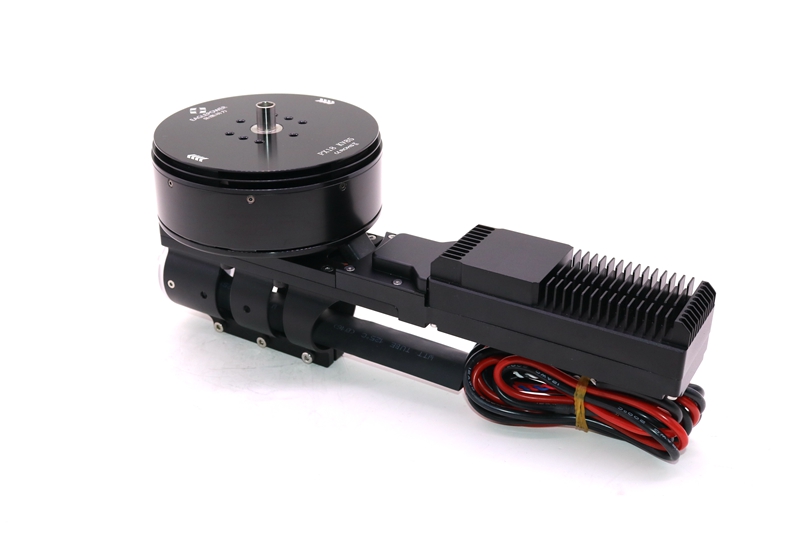

枭鹰动力套装PX18L-14S适用多旋翼无人机单轴额定拉力18KG 48英寸折叠桨

浏览:1872 发表时间:2022-09-27

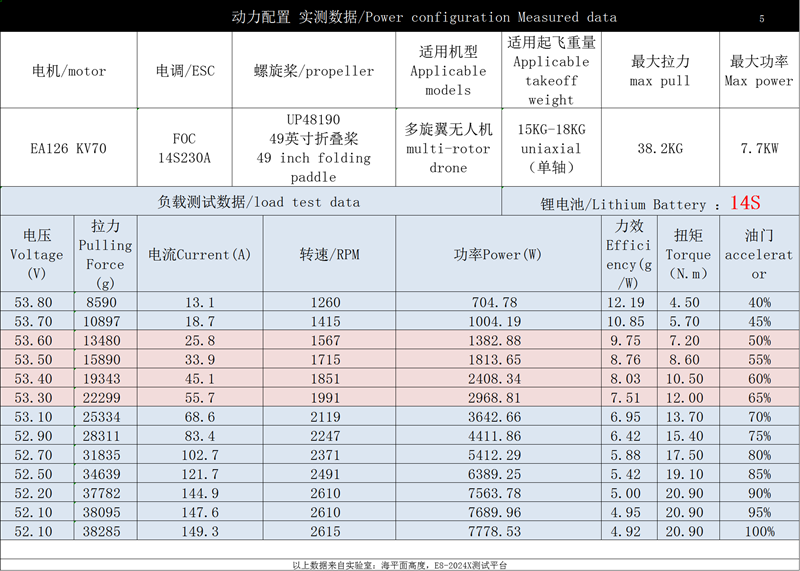

型号/ModelPX18L   FOC 动力套



最大拉力/Max pull

38.2KG (@14S/UP48190折叠)

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight

15KG-18KG/

适用锂电池/Applicable lithium battery14S

适用环境温度/Applicable ambient temperature-20℃~65℃

动力组总重量/Power combination total weight:2.55KG

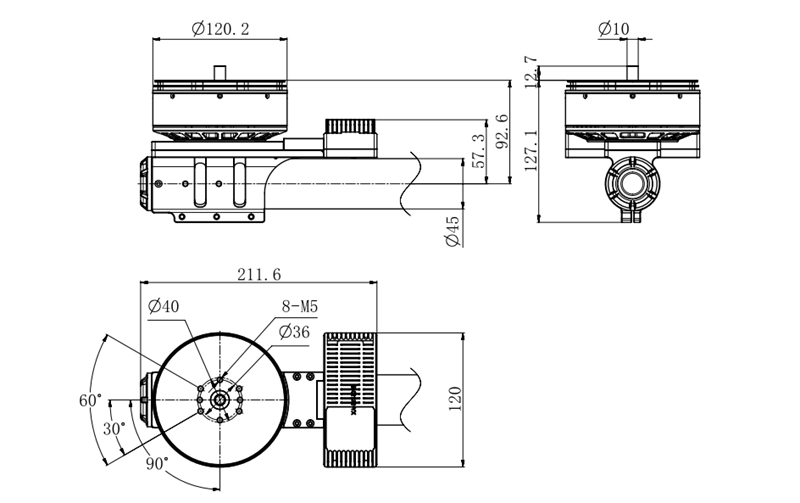

电机座适用管径/Applicable pipe diameter of motor base:

Ø40mm  Ø45mm









电机/Motor:EA126 KV70

结构形式/Structure form:36N40P

重量/Weight:1280 g

定子铁芯尺寸/Stator core size:φ110*23 mm

外形尺寸/Dimensions:φ120.1*55 mm

主轴直径/Spindle diameter:IN: φ15 mm OUT:φ10 mm

动平衡标准/Dynamic balance standard:≤15mg



电调/ESCFOC14S230A

驱动方式/Driving modeFOC 正弦波

支持锂电池/Support lithium battery12S-14S

PWM油门脉宽/PWM throttle pulse width1100us-1900us

PWM输入频率/PWM input frequency:50Hz-500Hz

PWM输入电平/PWM input level3.3V/5V

通讯接口/Communication interfaceCAN

黄:CANH-1,蓝:CANL-2

尺寸/ size120*48*34 mm  (L*S*H)

工作环境温度/Working temperature-20℃~65℃

防护等级/Class of protectionIPX7

桨叶/propeller

型号/modelUP48190

结构/structure折叠

长度/lengthL1220 mm   48inches

重量/weight

700g/支 (含桨座/Propeller seat)

桨叶片单片260/One blade is 260 grams
