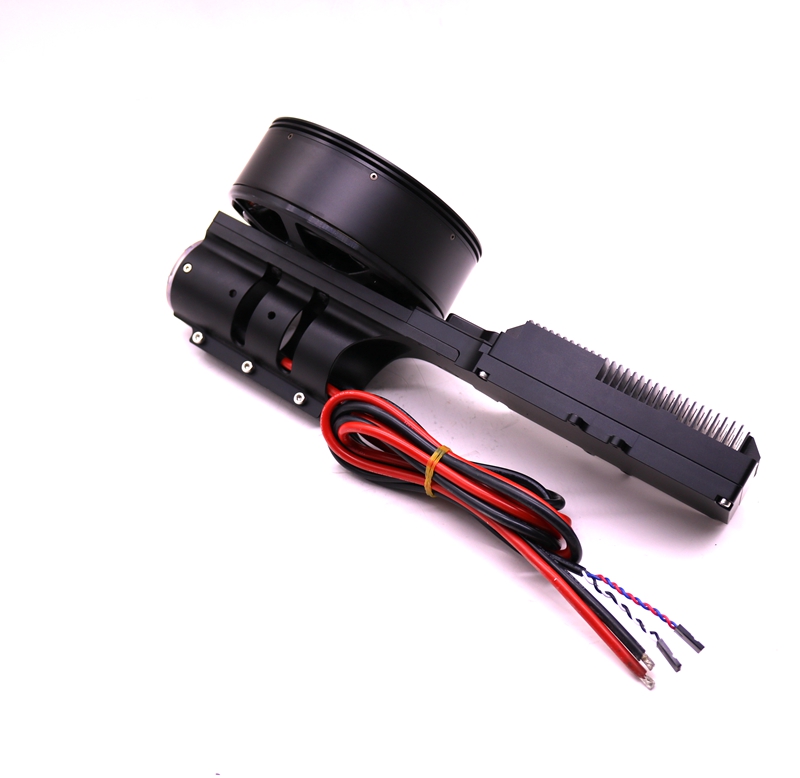

型号/Model:PX30-18S FOC 一体动力套
最大拉力/Max pull:
60.8KG (@18S/UP5620碳素折叠桨)
推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight)
25KG-30KG/轴
适用锂电池/Applicable lithium battery:18S
适用环境温度/Applicable ambient temperature:-20℃~65℃
动力组总重量/Power combination total weight:3900g
电机座适用管径/Applicable pipe diameter of motor base:
50MM
电机/Motor:13830 KV45
结构形式/Structure form:36N42P
重量/Weight:2180 g
定子铁芯尺寸/Stator core size:φ138*30 mm
外形尺寸/Dimensions:φ147.6*60.4 mm
主轴直径/Spindle diameter:IN: φ15 mm OUT:φ10 mm
动平衡标准/Dynamic balance standard:≤15mg
电调/ESC:FOC24S220A
驱动方式/Driving mode:FOC 正弦波
支持锂电池/Support lithium battery:48S-100S
PWM油门脉宽/PWM throttle pulse width:1100us-1900us
PWM输入频率/PWM input frequency:50Hz-500Hz
PWM输入电平/PWM input level:3.3V/5V
通讯接口/Communication interface:CAN*2 (CAN2.0B, 1M bps)
黑色:GND,黄:CANH-1,绿:CANL-1,红:CANH-2,蓝:CANL-2
尺寸/ size: 117*67*37 mm (长L*宽S*高H)
重量/weight:630 g
工作环境温度/Working temperature:-20℃~65℃
防护等级/Class of protection:IPX7
桨叶/propeller
型号/model:UP5620
结构/structure:折叠桨
长度/length:1425 mm 56英寸 56inches
螺距/Pitch:20
重量/weight:862g (含桨座)
