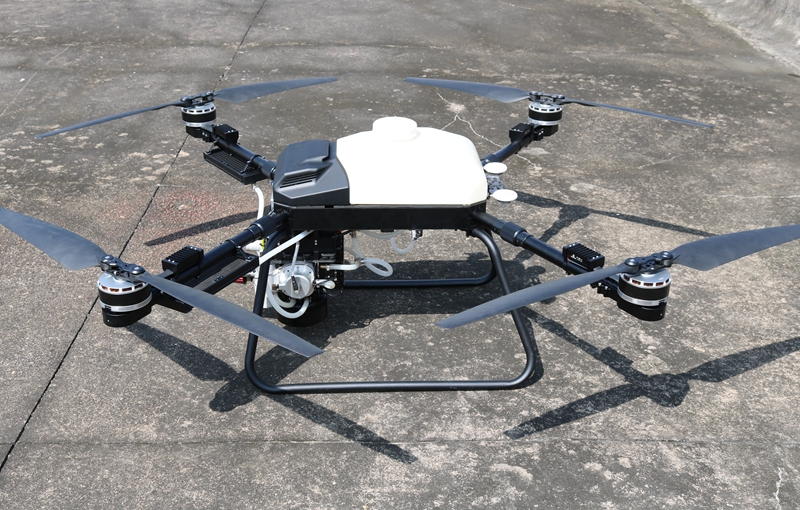

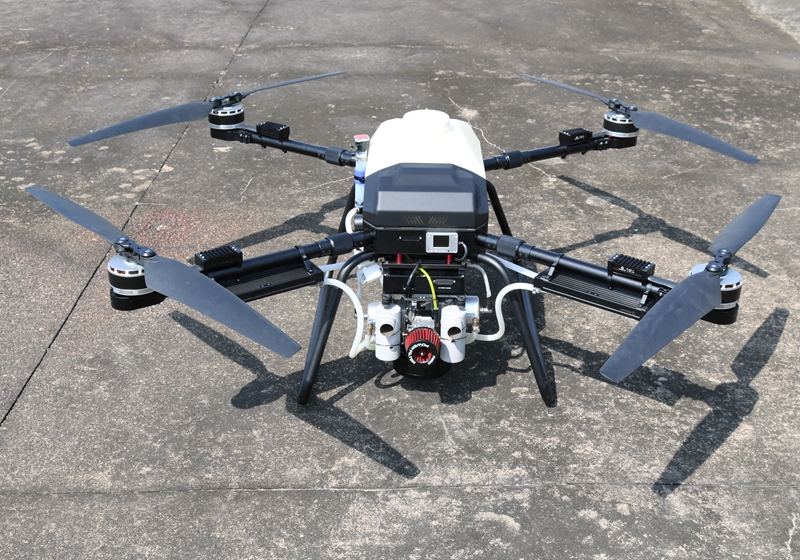

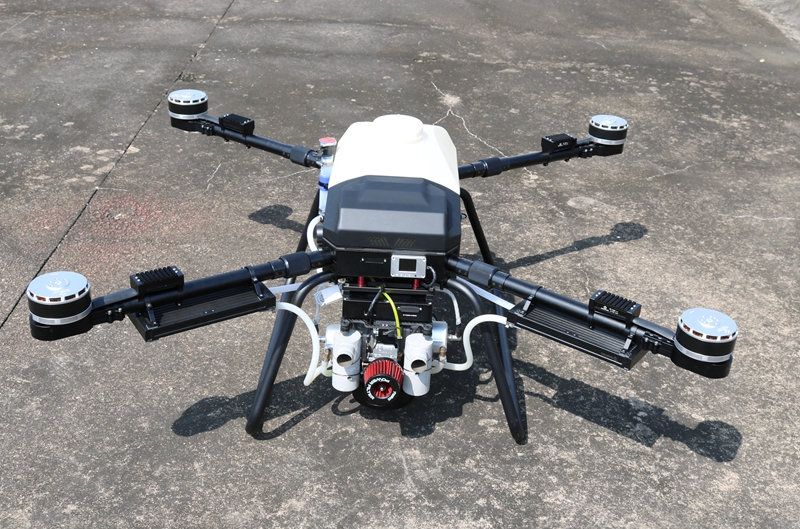

OUR PRODUCTS CENTERSF-X4-F7000 Hybrid UAV
SF-X4-F7000 适用于行业应用无人机
型号/model ------------------------------------------------------------------SF-X4-F7000
轴数/Number of axes------------------------------------------------------------4轴/4 axis
轴距/Wheelbase-------------------------------------------------------------------1650 mm
动力方式/Power mode---------------------------------油电混合动力/Hybrid power
油箱容积/Fuel tank capacity-----------------------------------------------------12L 16L
混合动力型号/Hybrid model------------------------------------------------------F7000
重量:(weight)
满载起飞重量/Full load takeoff weight:60KG
空机重量/Empty weight:32KG
有效负载重量(含燃油)/Payload weight (including fuel):28KG
推荐配置-1(Recommended configuration-1)
负载重量/Load weight:20KG
燃油重量/Fuel weight::8KG
续航时间/Battery life:70分钟 ( 70 minutes)
推荐配置-2(Recommended configuration-2)
负载重量/Load weight:15KG
燃油重量/Fuel weight::13KG
续航时间/Battery life:100分钟 ( 100 minutes)
油电混合动力系统:F7000
额定电压 :MIX 51.8V MAX 58.5V 14S
功率 :持续功率:6500W
耗油量 :9.0L/小时
燃油配比 :40:1(95#汽油,FD级2T机油)
工作温度 :-20~45摄氏度
启动方式 :一键启动
冷却方式 :液冷
动力系统
电机 :EA120 KV75 14S
电调(ESC) :EP-120A 14S
螺旋桨 :UP43135 43英寸 折叠桨
Hybrid electric system: F7000
Rated voltage: MIX 51.8V MAX 58.5V 14S
Power: Continuous power: 6500W
Fuel consumption: 9.0L/hour
Fuel ratio: 40:1 (95# gasoline, FD grade 2T engine oil)
Working temperature: -20~45 degrees Celsius
Start-up mode: one-key self-start
Cooling method: air cooling
Power system
Motor: EA120 KV75 14S
ESC: EP-120A 14S
Propeller: UP43135 43 inch folding propeller
