上飞航空 SF-416农业植保喷洒无人机4轴16L油电混合动力F6000-14S

SF-416      16L油电混合植保机    F6000

型号/model ----------------------------------------------------------------------------SF-416

轴数/Number of axes------------------------------------------------------------4轴/4 axis

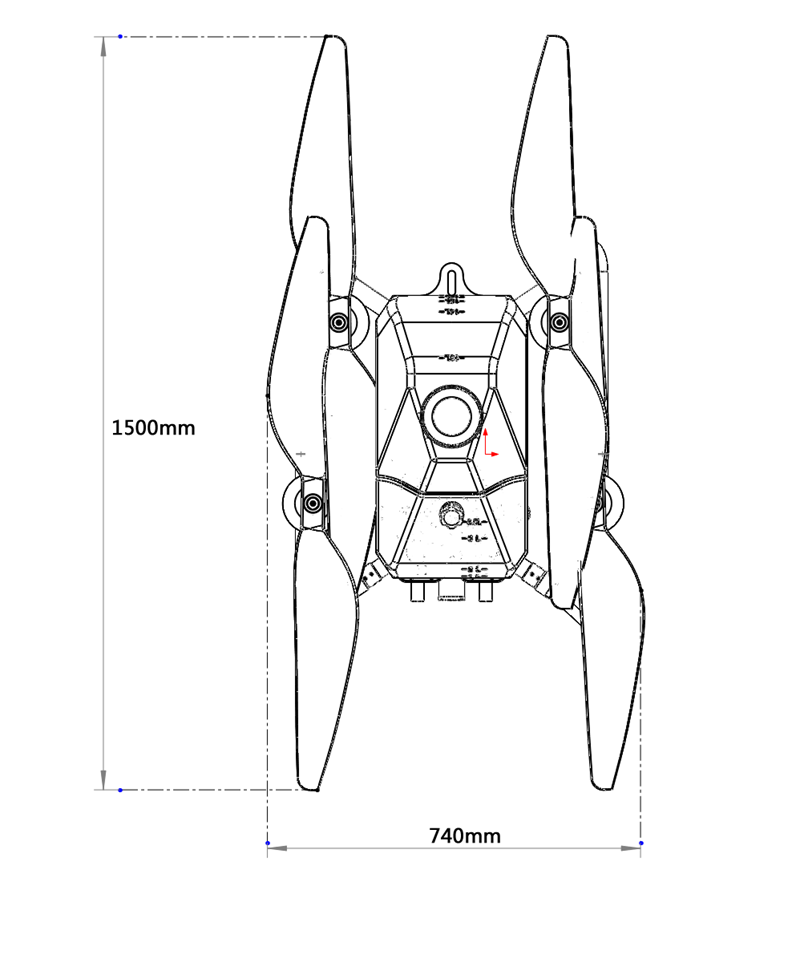

轴距/Wheelbase-------------------------------------------------------------------1500 mm

动力方式/Power mode---------------------------------油电混合动力/Hybrid power

药箱容积/Medicine box volume-------------------------------------------------max 16L

油箱容积/Fuel tank capacity-----------------------------------------------------max 3.5L

混合动力型号/Hybrid model--------------------------------------------------------F6000

重量：（weight）

1/满载起飞重量/Full load takeoff weight：44KG

2/空机重量/Body weight：27KG

油电混合动力系统：F6000

额定电压      ：MIX 51.8V MAX 58.5V 14S

功率          ：持续功率：4500W

重量          ：7.8kg

耗油量        ：1.0L/架次     6.5L/小时

燃油配比      ：25：1（95#汽油，FD级2T机油）

工作温度      ：-20~45摄氏度

启动方式      ：一键自启动

冷却方式      ：风冷



动力系统

电机          ：EA118 KV105   14S

电调（ESC）   ：EP-120A   14S

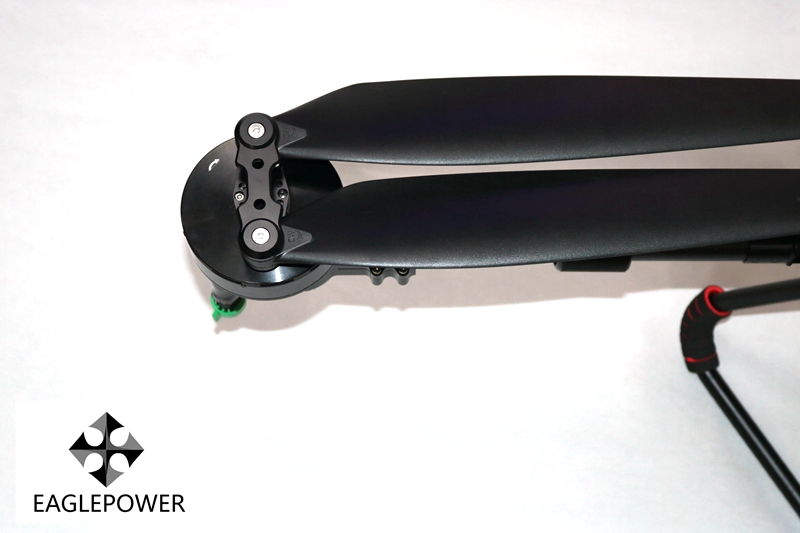

螺旋桨        ：UP40140    40英寸   折叠桨



飞控系统

飞行模式及功能：姿态模式，GPS模式，双水泵模式，保护模式（返航，降落，悬停），AB点作业，全自主模式，失控继续作业，断药保护功能，震动保护功能，丢星保护功能，

遥控器主动降噪功能，方向检测功能。

仿地雷达模块：穿透性强（含雾 烟 尘 小雨）不受光线影响，抗干扰能力强，环境适用性好，性能稳定，探测距离15 m.



Flight Parameters

No-load weight (without spare battery, without oil): 27kg

Standard Takeoff Weight: 44kg

Backup battery:                                          14S 10000MAH

Hovering Time*: 30min

Max Operating Speed: 6m/s.

Max Flying Speed: 10m/s.

Max Altitude: 200m

Recommended Operating Temperature: -20 to 50°C

Remote Receiver SKYDROID R12

Fight Control JIYI K Series

Operating Frequency: 2.400 - 2.483 GHz



Spray System

LIQUID TANK

Volume: 16L

Standard Operating Payload: 16kg



Remote Controller

Model: SKYDROID T12

Operating Frequency: 2.400 - 2.483 GHz

Max Transmission Range: 3km

EIRP: @2.4GHz: FCC 20 dbm

@2.4GHz: CE 16 dbm

Remote Controller Battery: 4000mA



Hybrid Electric Power System

Rated voltage:                          MIX 51.8V MAX 58.5V 14S

Power:                                Continuous power: 4500W

Weight:                                7.8kg (without cooling system)

Working fuel consumption:               (1L) / sorties

Fuel ratio:                             25:1 (95# gasoline, FD grade 2T engine oil)

Working temperature:                  -20~50 degrees Celsius

Start-up mode:                        one-key self-start

Cooling method:                       Wind cooling
