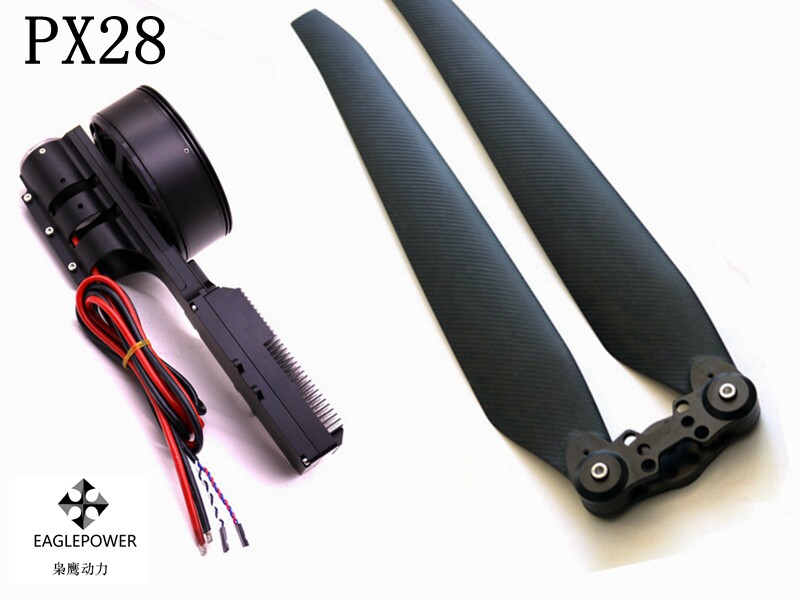

枭鹰PX28-18S多轴旋翼无人机动力套起飞重量25-28kg/轴56英寸

浏览:1008 发表时间:2025-10-30

型号/Model:PX28-18S   FOC 一体动力套



最大拉力/Max pull:

58.3KG (@18S/UP5620碳素折叠桨)

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight)

25KG-28KG/轴

适用锂电池/Applicable lithium battery:18S

适用环境温度/Applicable ambient temperature:-20℃~65℃

动力组总重量/Power combination total weight:3800g

电机座适用管径/Applicable pipe diameter of motor base:

Ø50MM  Ø60MM





电机/Motor:13830 KV45

结构形式/Structure form:36N42P

重量/Weight:2180 g

定子铁芯尺寸/Stator core size:φ138*30 mm

外形尺寸/Dimensions:φ147.6*60.4 mm

主轴直径/Spindle diameter:IN: φ15 mm OUT:φ10 mm

动平衡标准/Dynamic balance standard:≤15mg



电调/ESC:FOC18S230A

驱动方式/Driving mode:FOC 正弦波

支持锂电池/Support lithium battery:18S

PWM油门脉宽/PWM throttle pulse width:1100us-1900us

PWM输入频率/PWM input frequency:50Hz-500Hz

PWM输入电平/PWM input level:3.3V/5V

白/white:PWM input   黑/Black:地线/GND

通讯接口/Communication interface:CAN

红/red:CANH,蓝/blue:CANL

工作环境温度/Working temperature:-20℃~65℃

防护等级/Class of protection:IPX7







桨叶/propeller

型号/model:UP5620

结构/structure:折叠桨

长度/length:1425 mm  56英寸 56inches

螺距/Pitch:20

重量/weight:862g (含桨座)
