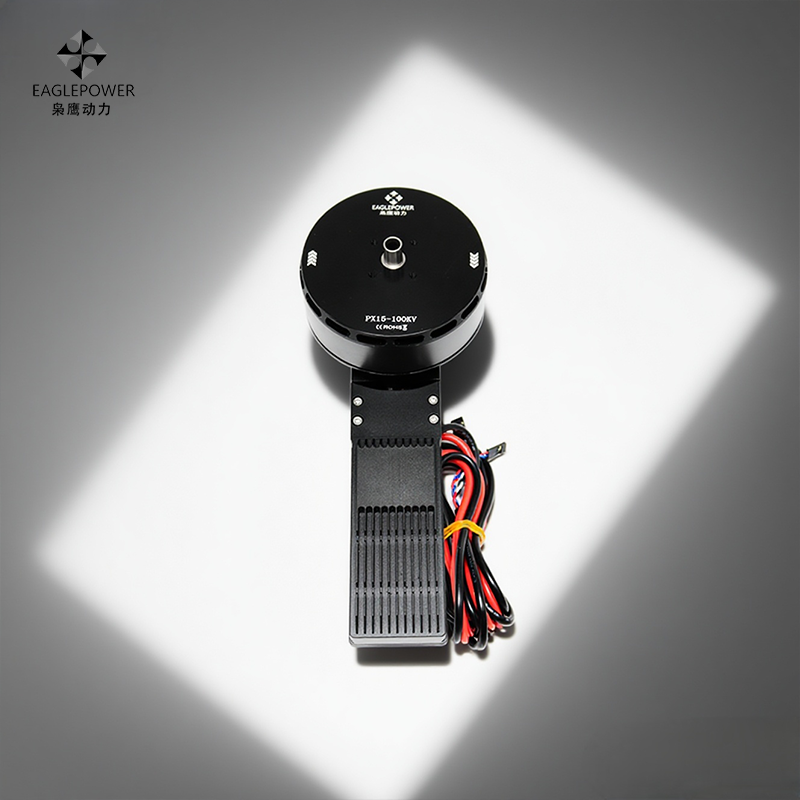

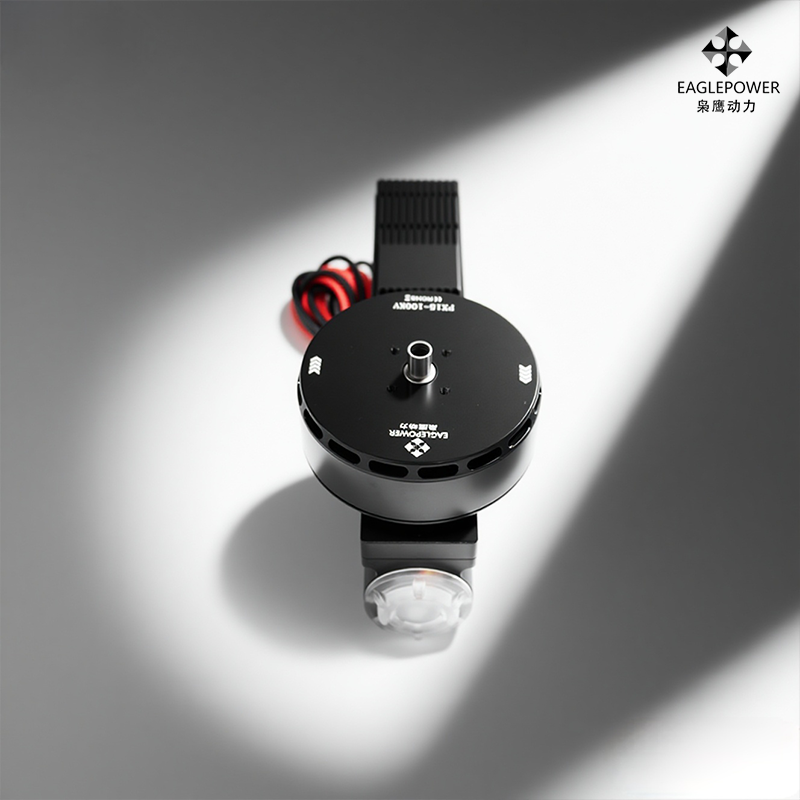

枭鹰PX15-12S 14S多轴旋翼无人机动力套起飞重量15kg/轴

浏览:1181 发表时间:2025-10-30

型号/Model:PX15   FOC 动力套

最大拉力/Max pull:

30.1KG

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight)

15KG/轴

适用锂电池/Applicable lithium battery:12-14S

适用环境温度/Applicable ambient temperature:-20℃~65℃

动力组总重量/Power combination total weight:

1735g (36-inch folding paddle)

1998g (40-inch folding paddle)

电机座适用管径/Applicable pipe diameter of motor base:

Ø40mm  Ø45mm

正负极出线长度/Length of positive and negative leads:

1300mm

信号引出线长度/Signal lead length:1300mm

电机/Motor:EA113 KV110 KV100

结构形式/Structure form:36N40P

重量/Weight:860 g

定子铁芯尺寸/Stator core size:φ96*20 mm

外形尺寸/Dimensions:φ104*46.9 mm

主轴直径/Spindle diameter:IN: φ12 mm OUT:φ10 mm

动平衡标准/Dynamic balance standard:≤15mg





电调/ESC:FOC14S150A

驱动方式/Driving mode:FOC 正弦波

支持锂电池/Support lithium battery:12S-14S

PWM油门脉宽/PWM throttle pulse width:1100us-1900us

PWM输入频率/PWM input frequency:50Hz-500Hz

PWM输入电平/PWM input level:3.3V/5V

白/white:PWM input   黑/Black:地线/GND

通讯接口/Communication interface:CAN

红/red:CANH,蓝/blue:CANL

尺寸/ size: 117*67*37 mm  (长L*宽S*高H)

重量/weight:395 g

工作环境温度/Working temperature:-20℃~65℃

防护等级/Class of protection:IPX7

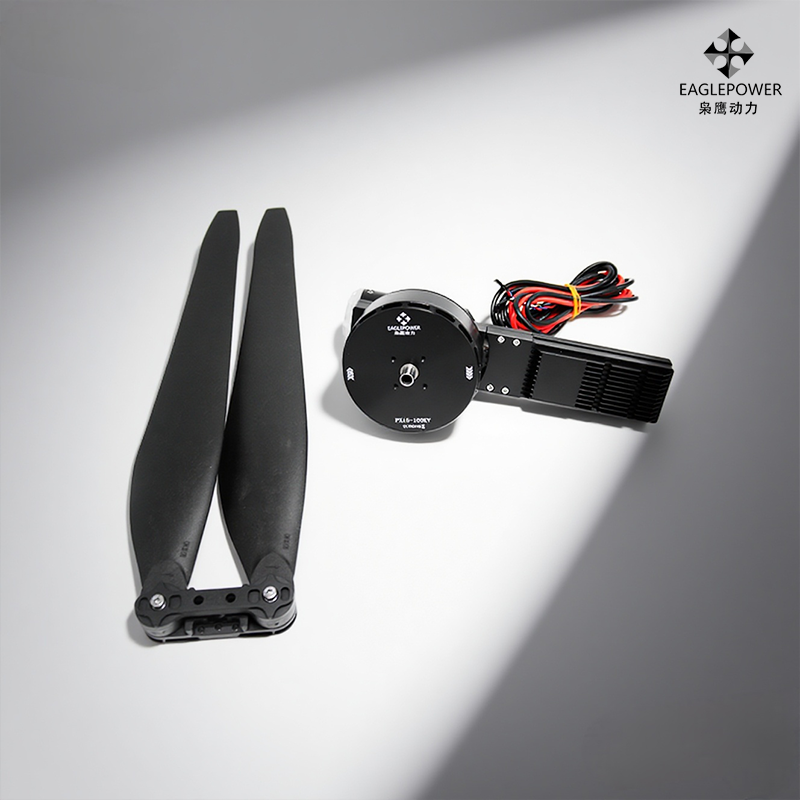

桨叶/propeller

型号/model:UP36120  UP40132

结构/structure:折叠桨/Folding paddle

长度/length:

UP36120:L915 mm   36inches

UP40132:L1016 mm  40inches

重量/weight:

UP36120:311g/支 (含桨座/Propeller seat)

桨叶片单片105克/One blade is 105 grams

UP40132:430g/支 (含桨座/Propeller seat)

桨叶片单片153克/One blade is 153 grams
