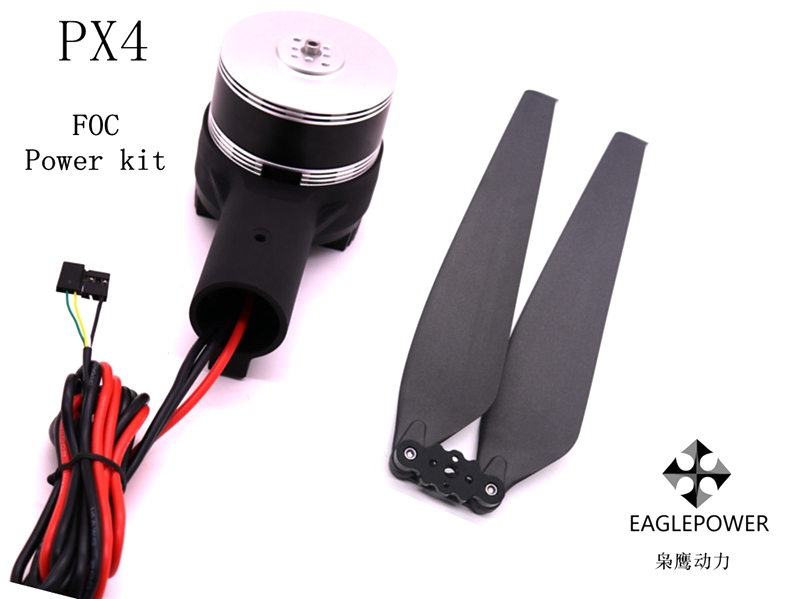

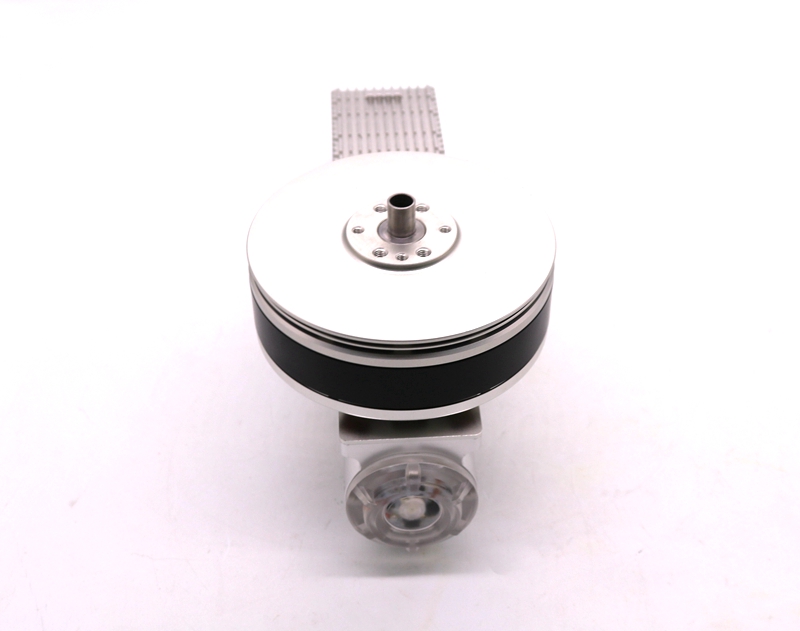

枭鹰动力套装PX4适用多旋翼无人机单轴额定拉力3-4KG

浏览:11357 发表时间:2022-09-26

型号/Model:PX4   FOC 动力套

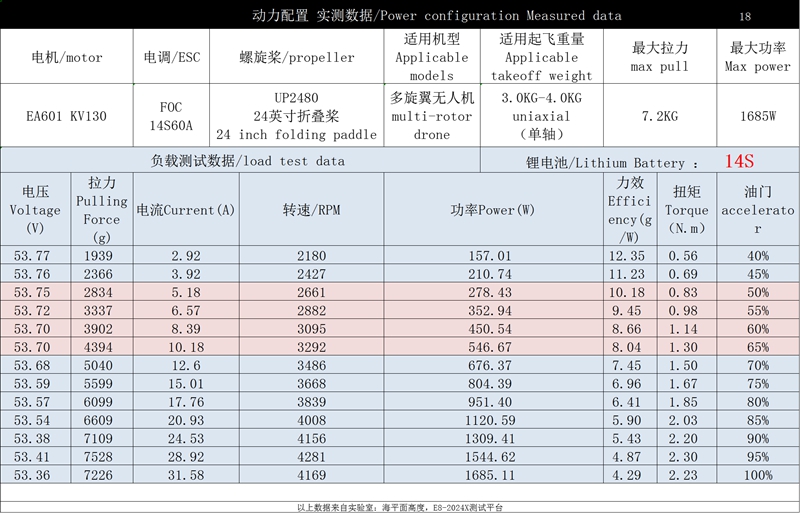

最大拉力/Max pull:

7.2KG (@14S/UP2480折叠桨)

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight)

3.0KG-4.0KG/轴

适用锂电池/Applicable lithium battery:12-14S

适用环境温度/Applicable ambient temperature:-20℃~65℃

动力组总重量/Power combination total weight:558g

电机座适用管径/Applicable pipe diameter of motor base:

Ø30mm

正负极出线长度/Length of positive and negative leads:

950mm

信号引出线长度/Signal lead length:1050mm

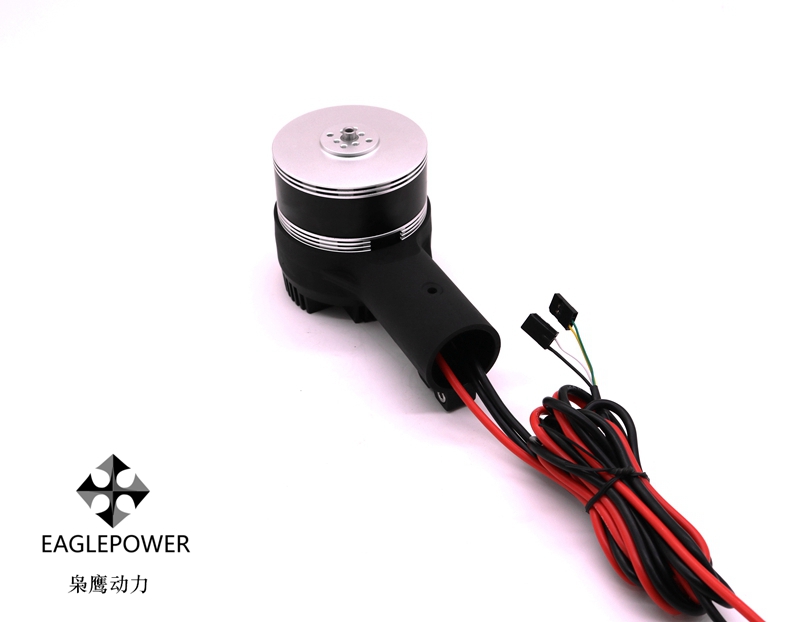

电机/Motor:EA601 KV130、

结构形式/Structure form:24N28P

重量/Weight:260 g

定子铁芯尺寸/Stator core size:φ62*10 mm

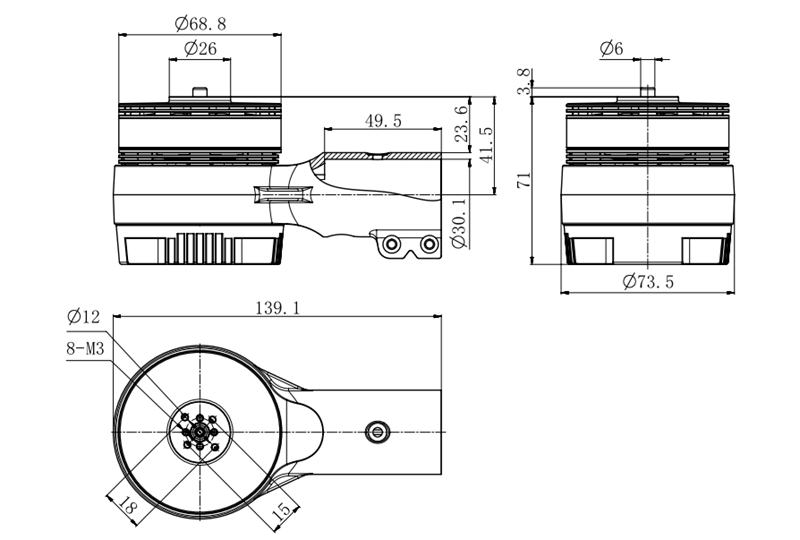

外形尺寸/Dimensions:φ68.8*31 mm

主轴直径/Spindle diameter:IN: φ6 mm OUT:φ6 mm

动平衡标准/Dynamic balance standard:≤10mg



电调/ESC:FOC14S60A

驱动方式/Driving mode:FOC 正弦波

支持锂电池/Support lithium battery:12S-14S

PWM油门脉宽/PWM throttle pulse width:1100us-1900us

PWM输入频率/PWM input frequency:50Hz-500Hz

PWM输入电平/PWM input level:3.3V/5V

通讯接口/Communication interface:CAN

黄:CANH-1,蓝:CANL-2

工作环境温度/Working temperature:-20℃~65℃











桨叶/propeller

型号/model:UP2480

结构/structure:折叠桨

长度/length:L610 mm   24 inches

重量/weight:82g/支 (含桨座/Propeller seat)

桨叶片单片30克/One blade is 30 grams
