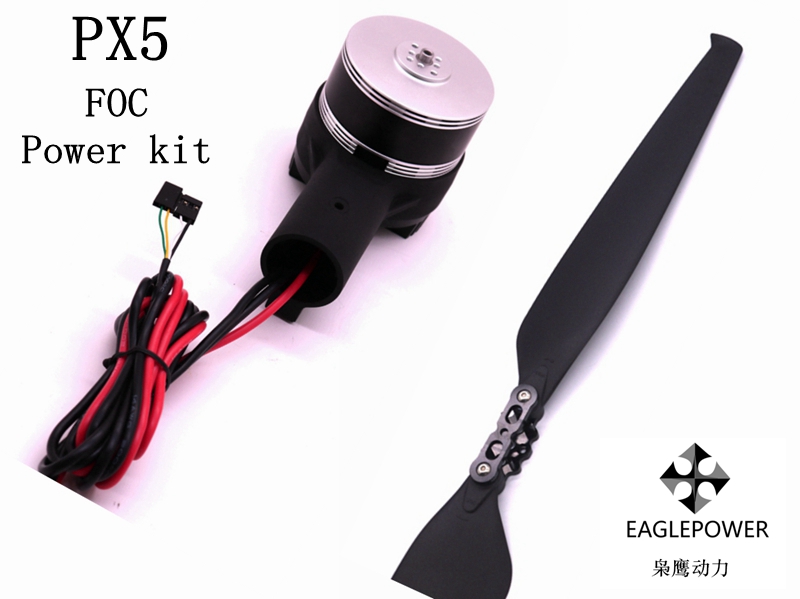

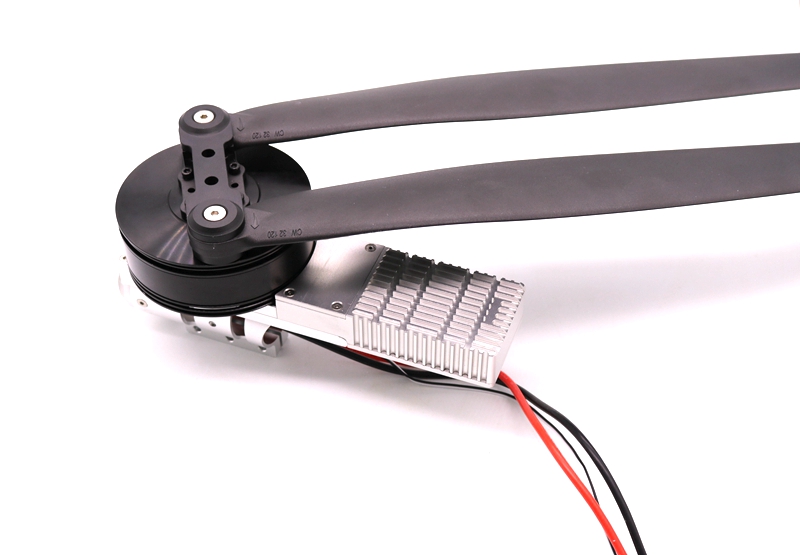

枭鹰动力套装PX5适用多旋翼无人机单轴额定拉力4-5KG

浏览:10754 发表时间:2022-09-26

型号/ModelPX5   FOC 动力套

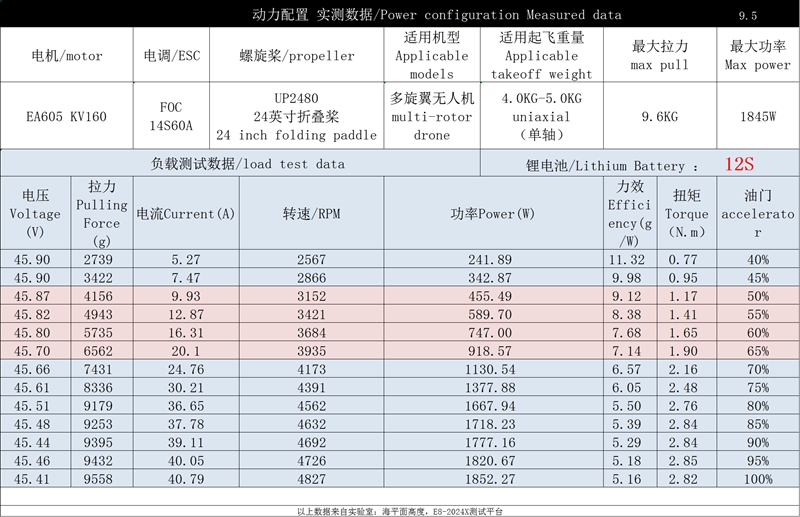

最大拉力/Max pull

9.6KG (@12S/UP2480折叠)

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight

4.0KG-5.0KG/

适用锂电池/Applicable lithium battery12S

适用环境温度/Applicable ambient temperature-20℃~65℃

动力组总重量/Power combination total weight:650g

电机座适用管径/Applicable pipe diameter of motor base:

Ø30mm

正负极出线长度/Length of positive and negative leads

950mm

信号引出线长度/Signal lead length1050mm







电机/Motor:EA605 KV160

结构形式/Structure form:24N28P

重量/Weight:354 g

定子铁芯尺寸/Stator core size:φ62*15 mm

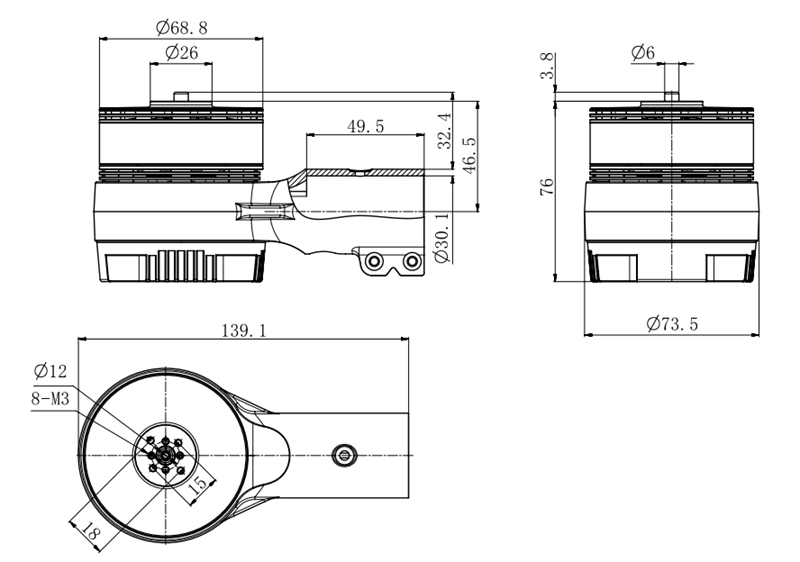

外形尺寸/Dimensions:φ68.8*36 mm

主轴直径/Spindle diameter:IN: φ6 mm OUT:φ6 mm

动平衡标准/Dynamic balance standard:≤10mg



电调/ESCFOC14S60A

驱动方式/Driving modeFOC 正弦波

支持锂电池/Support lithium battery12S-14S

PWM油门脉宽/PWM throttle pulse width1100us-1900us

PWM输入频率/PWM input frequency:50Hz-500Hz

PWM输入电平/PWM input level3.3V/5V

通讯接口/Communication interfaceCAN

黄:CANH-1,蓝:CANL-2

工作环境温度/Working temperature-20℃~65℃











桨叶/propeller

型号/modelUP2480

结构/structure折叠

长度/lengthL610 mm   24 inches

重量/weight82g/支 (含桨座/Propeller seat)

桨叶片单片30/One blade is 30 grams
