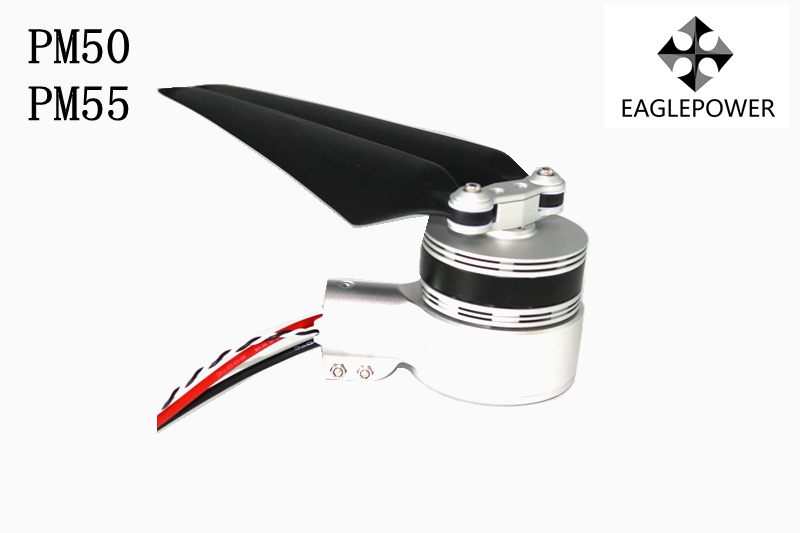

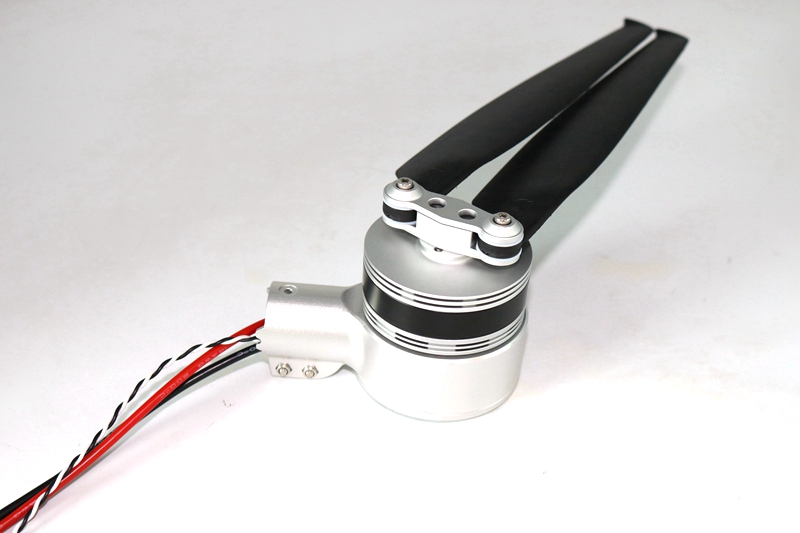

EP枭鹰动力套装PM50 PM55适用航测多轴教练无人机 电机+电调+螺旋桨

浏览:10305 发表时间:2022-09-26

型号/ModelPM50

动力组(Power mix

最大拉力/Max pull

PM50 KV3103680g

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight

PM50 KV310  : 1.2KG-1.4KG/

适用锂电池/Applicable lithium battery6S

动力组总重量/Power combination total weight

PM50 KV310  : 361g

电机座适用管径/Applicable pipe diameter of motor base

Ø25mm/Ø22mm

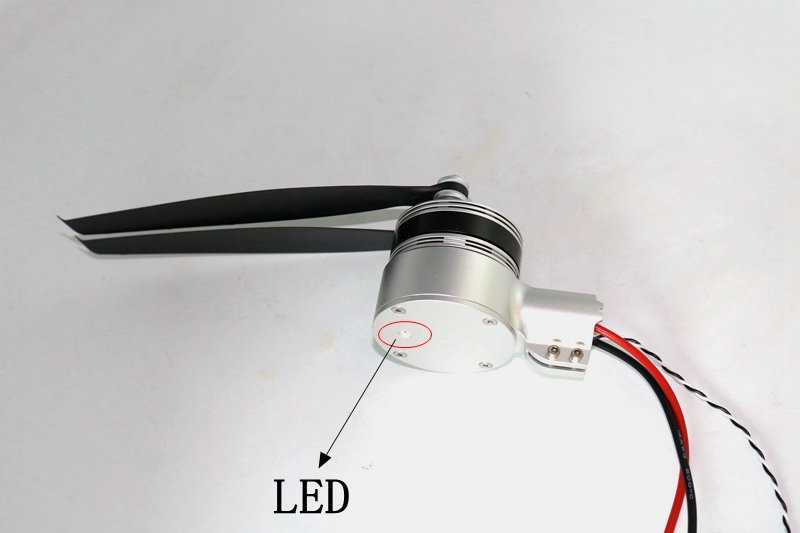

LED lights: Red Green

适用环境温度/Applicable ambient temperature-20℃~65℃



电机/Motor/EA5408

KV值:310 RPM/V

重量/weight185 g

电机尺寸Motor sizeØ59.4*29 mm

直径/Spindle diameterØmm

输出轴直径-Output shaft diameterØmm

定子安装孔尺寸/Stator mounting hole size4-M3均布 Ø25

转子安装孔尺寸/Rotor mounting hole size

12-M3   中心距  Center distance   15mm

22-M3   中心距  Center distance) 12mm



电调/ESC/50A

支持锂电池/Support lithium battery6S

油门脉宽/Throttle pulse width1050us-1940us

兼容信号频率/Compatible signal frequency:50Hz-500Hz

BEC:No



桨叶/propeller

型号/model  UP1855

结构/structure折叠桨 Folding paddle

长度/length460mm  18英寸 18 inches

螺距/Pitch5.5 inches

重量/weight50 g





型号/ModelPM55

动力组(Power mix

最大拉力/Max pull

PM55 KV2804750g

推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight

PM55 KV280  : 1.8KG-2.0KG/

适用锂电池/Applicable lithium battery6S

动力组总重量/Power combination total weight

PM55 KV280  : 439g

电机座适用管径/Applicable pipe diameter of motor base

Ø25mm/Ø22mm

LED lights: Red Green

适用环境温度/Applicable ambient temperature-20℃~65℃



电机/Motor/EA5412

KV值:280 RPM/V

重量/weight245 g

电机尺寸Motor sizeØ59.4*33 mm

直径/Spindle diameterØmm

输出轴直径-Output shaft diameterØmm

定子安装孔尺寸/Stator mounting hole size4-M3均布 Ø25

转子安装孔尺寸/Rotor mounting hole size

12-M3   中心距  Center distance   15mm

22-M3   中心距  Center distance) 12mm



电调/ESC/50A

支持锂电池/Support lithium battery6S

油门脉宽/Throttle pulse width1050us-1940us

兼容信号频率/Compatible signal frequency:50Hz-500Hz

BEC:No



桨叶/propeller

型号/model  UP2170

结构/structure折叠桨 Folding paddle

长度/length533mm  21英寸 21inches

螺距/Pitchinches

重量/weight66 g
